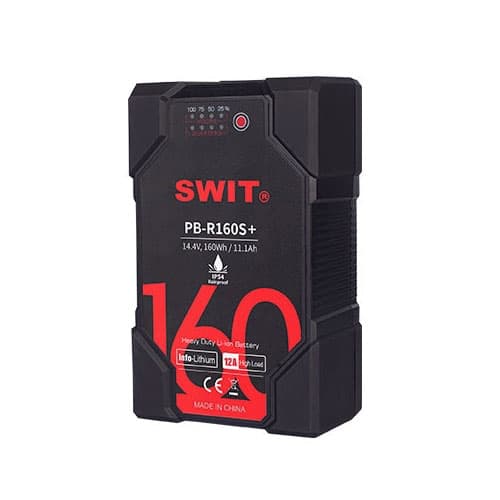

SWIT PB-R160S+ 160Wh Heavy Duty IP54 Battery Pack
SKU PB-R160Splus
View More Items From
Brand
SWIT
Key Information
- IP54 water/dust proof
- Strong 1.5m drop off proof
- 14.4V, 160Wh capacity
- 200W/16A constant high load
- 6A fast charging support
- 8-LED digital power indicators
- SONY/RED viewfinder power info display
- D-tap power output socket
DZD 117,600.00
SWIT PB-R160S+ 160Wh Heavy Duty IP54 Battery Pack—
DZD 117,600.00
Product Details
SWIT PB-R160S+ 160Wh Heavy Duty IP54 Battery Pack. Heavy Duty BatteryHigh load & IP54 waterproof PB-R160S+ is a 160Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications. IP54 Waterproof1.5 meters drop-off proof PB-R160S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off. 160Wh / 11.1Ah CapacityThe largest capacity for airplane boarding Consists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane.Can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA. High Load for Cine Cameras200W / 16A constant load PB-R160S+ provides at least 200W/16A high load even at 1% capacity, (Peak load up to 245W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. 6A Fast ChargingUsing SWIT S-3812S fast charger PB-R160S+ supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time. The 160Wh PB-R160S+ battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours. Digital Power Info8-LED + SONY&RED viewfinder info PB-R160S+ has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder. D-tap SocketA D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.The Max output current of D-tap is 10A.
