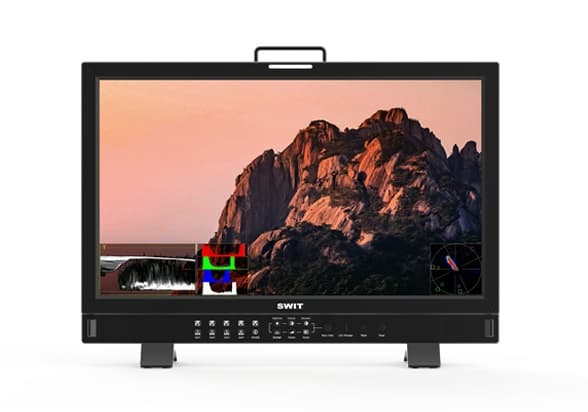

SWIT BM-H245 23.8-inch 4K input FHD Broadcast Monitor
SKU BM-H245
View More Items From
Brand
SWIT
Key Information
- 23.8-inch 1920×1080 QLED Panel
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12GSDI, 4x3GSDI, HDMI2.0 4K input
- 4-ch SDI/HDMI mixed multiview
- 2-ch SDI/HDMI PBP or PIP view
- Multi Color Gamut & HDR/SDR Viewing
- Payload ID auto setting
DZD 617,400.00
SWIT BM-H245 23.8-inch 4K input FHD Broadcast Monitor—
DZD 617,400.00
Product Details
SWIT BM-H245 23.8-inch 4K input FHD Broadcast Monitor. 23.8-inch QLED WCG PanelFHD, 100% DCI-P3 Coverage BM-H245 adopts a 23.8-inch1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, 1000:1 contrast, H/V 178° viewing angle for broadcast and film productions. Multi 4K InterfacesBM-H245 provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:- 12GSDI Single link 4K;- 4x3GSDI Quadlink 4K, (SQD and 2SI)- HDMI 2.0 (4K60P) Supports pixel-to-pixel zoom-in the 4K signal to FHD panel. Display ModesSupports Single link 4K input including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input. VICO 1.97 Eye ProtectBM-H245 QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively. The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions. HDR/SDR EOTFs and Color Gamut SelectionBM-H245 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
