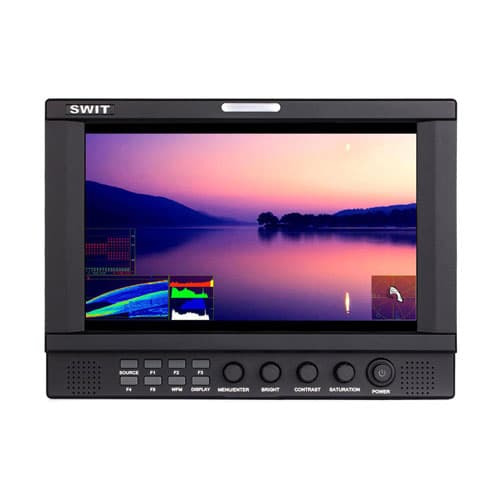

SWIT 9-inch Full HD Waveform LCD Monitor
SKU S-1093FF(LUXURY)
View More Items From
Brand
SWIT
Key Information
- 9” IPS LCD, 1920×1200, H/V 170°viewing
- Build-in LCD protective glass
- 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring
- 16-ch Embedded audio meters with alert
DZD 323,400.00
SWIT 9-inch Full HD Waveform LCD Monitor—
DZD 323,400.00
Product Details
SWIT 9-inch Full HD Waveform LCD Monitor IPS panel with LED backlightThe S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170° LCD Protective GlassThe LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken. Input/Output InterfacesSDI / HDMI / CVBS / Analog AudioS-1093F monitor supports:2K/3G/HD/SD-SDI input × 22K/3G/HD/SD-SDI loop output × 2HDMI® input × 1HDMI® loop output × 1CVBS input × 1CVBS loop output × 13.5mm analog audio input × 13.5mm analog audio output × 1 Video Analysis Assistant PatternWaveform / Vector scope / Histogram S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence. Embedded audio monitoringUp to 16-ch meters with alert and select output S-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable. Features: 9” IPS LCD, 1920×1200, H/V 170°viewing Build-in LCD protective glass 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring 16-ch Embedded audio meters with alert Select any 2 audio channels to output Waveform Y/Cb/Cr/R/G/B and single line Vector scope, histogram R/G/B/Y AFD, H/V delay, R/G/B/Mono, False color TSL UMD and text TALLY display Zebra stripes, Peaking focus assist SDI timecode display Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
