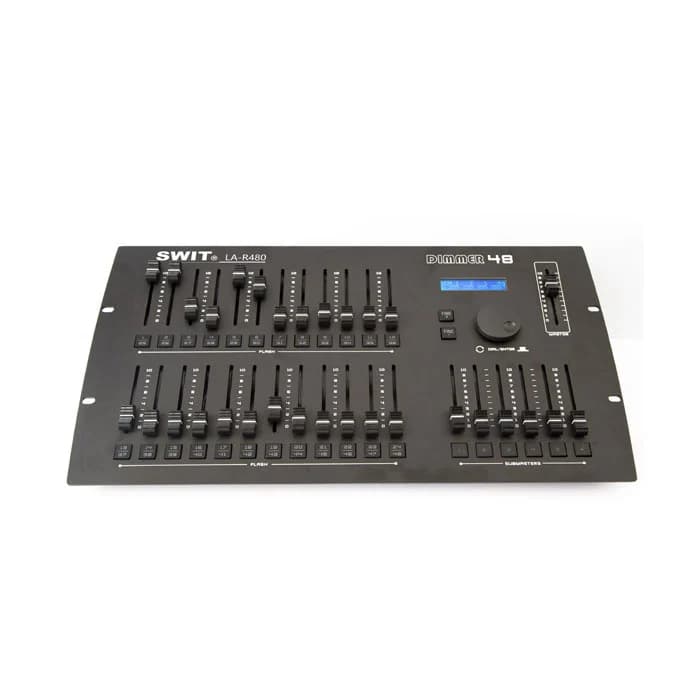

SWIT 48-ch DMX512 Light Console
SKU LA-R480
View More Items From
Brand
SWIT
Key Information
- Standard DMX512 console with isolater
- 24x channel sliders with A/B switch to 48-ch
- 6x submaster slider and 1x master slider
- Up to 4 units serial connection to 192 channels
- LCD display DMX values of each channel
- Flash control buttons for each slider
- 19-inch rack mountable
DZD 135,240.00
SWIT 48-ch DMX512 Light Console—
DZD 135,240.00
Product Details
SWIT LA-R480 48-ch DMX512 Light Console. 48-ch DMX ConsoleLA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total. InterfaceLA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female. Submaster and Master ControlLA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel. Serial Connection to Max 192-chYou can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.
