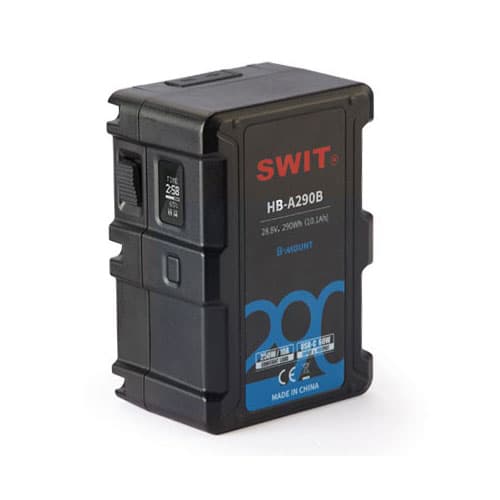

SWIT 290Wh 28.8V B-mount Battery Pack - ARRI Standard B-mount
SKU HB-A290B
View More Items From
Brand
SWIT
Key Information
- 28.8V ARRI Standard B-mount
- 290Wh/10.05Ah high capacity
- 250W, 10A constant high load
- 100W/3A fast charging
- D-tap 16V reg. output ×2
- USB-C 60W input and output
- USB-A 5V/2A output
- OLED power info display
DZD 183,750.00
SWIT 290Wh 28.8V B-mount Battery Pack - ARRI Standard B-mount—
DZD 183,750.00
Product Details
SWIT 290Wh 28.8V B-mount Battery Pack - ARRI Standard B-mount ARRI Standard B-mount Battery The B-mount battery interface is a new industry standard endorsed by ARRI and the wider industry with high voltage support and reliable lock system especially for filmmaker. 28.8V for Cine Gears The 28.8V (22-33.6V) high voltage matches with all ARRI cameras and lights, and high power cine equipments, reduce current effectively, reliable and longer life time. 290Wh Large Capacity HB-A290B battery has 290Wh / 10.05Ah large capacity, and at least 250W / 10A constant high load for cine cameras and devices. D-tap, USB-A and USB-C HB-A290B still provides with 2x D-tap of regulated 16V, 60W/3.8A load;1x USB-A 5V/2A;1x USB-C 60W input and 60W output USB-C 60W Power OutputYou can power laptop via USB-C by HB-A290B battery on the filmset. Supports 5V 3A, 9V 3A, 12V 3A, 15V 3A and Max 20V 3A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports) USB-C 60W Charging InputHB-A290B battery can be charged by USB-C charger, supports PD 15V 3A and 20V 3A, which means you can fully charge the 290Wh battery within 5.5 hours. OLED Power Info DisplayHB-A290B battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, USB-A / USB-C status, and protection warning code if any abnormal detected. 100W Super Fast ChargingYou can charge 4x HB-A290B simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x HB-A290B batteries. LED Flash LightYou can double press the Power Check button to switch on LED flash light on the rear side of the battery, to help you to find B-mount plate in dark production environment.Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
