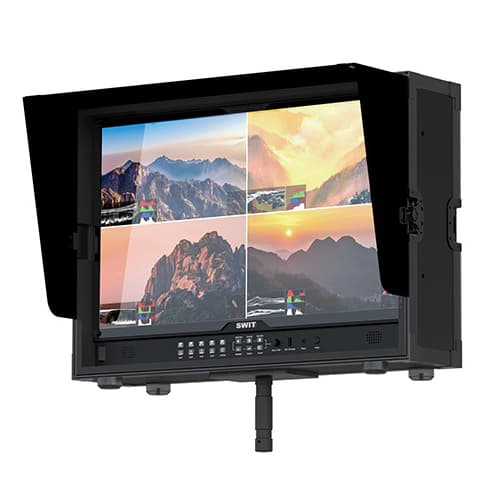

SWIT 23.8 inch 4K 1000nits 4×12G-SDI HDR Field Monitor
SKU FM-U245HDR
View More Items From
Brand
SWIT
Key Information
- 23.8” 4K UHD 3840×2160 HDR LCD with 1000nit brightness
- All-around flight case with sun hood and acrylic screen protector
- All 4K input interfaces: 12G/3G-SDI Quad-link, HDMI 2.0
- HDR/SDR and color gamut selectable per input in multiview
- Waveform, vector, audio phase, and surround tools built-in
- Anamorphic de-squeeze, camera LUTs, and 3DLUT upload
DZD 1,058,400.00
SWIT 23.8 inch 4K 1000nits 4×12G-SDI HDR Field Monitor—
DZD 1,058,400.00
Product Details
SWIT 23.8 inch 4K 1000nits 4×12G-SDI HDR Field Monitor Ultra-Bright 4K HDR DisplayThe FM-U245HDR features a 23.8-inch 3840×2160 UHD LCD panel with 1000nits high brightness for outdoor visibility, and supports HDR gamma including HLG1000, PQ1000, and S-Log3. SDR gamma options (1.8/2.2/2.4/2.6) are also selectable to match various production needs. Comprehensive 4K Input InterfacesSupporting both SDI and HDMI workflows, the FM-U245HDR accepts: 12G-SDI: 4 in / 4 loop3G-SDI Quadlink: 4K in / loop12G-SDI Quadlink: 8K in / loop (SQD or 2SI)HDMI 2.0: 4K input These options ensure seamless compatibility across broadcast and cinema production environments. Multiview MonitoringUsers can view up to 4 inputs in Quadview mode, or two sources side-by-side (Pic-by-Pic) or overlayed (Pic-in-Pic). Each view can be independently assigned HDR/SDR gamma and color gamut. Flight Case and Mounting SystemPre-installed in a robust flight case, the monitor includes an acrylic screen protector, sun hood, and detachable light stand adaptor compatible with junior and baby pin stands. Two top cheese plates allow wireless receiver or accessory installation. Audio Monitoring ToolsUp to 16 channels of embedded SDI audio can be monitored, with selectable 2-channel output to speaker or headphone. Advanced tools include Lissajous phase patterns and 5.1/7.1 surround visualization. Professional Video ToolsFM-U245HDR includes waveform, vectorscope, CIE scope, histogram, false color, zebra, focus assist, and eye pattern—providing a full suite of visual monitoring aids. Anamorphic De-squeeze & LUTsSupports real-time de-squeeze for 1.33x, 1.5x, 1.66x, 1.8x, 2x anamorphic lenses and cropping. Includes built-in camera log-to-REC709 LUTs and supports uploading 13 user 3DLUTs via front USB-A port. Reliable Power OptionsEquipped with a rear V-mount battery plate, and supports AC 100-240V and 4-pin XLR 12-17V DC input for field flexibility.
