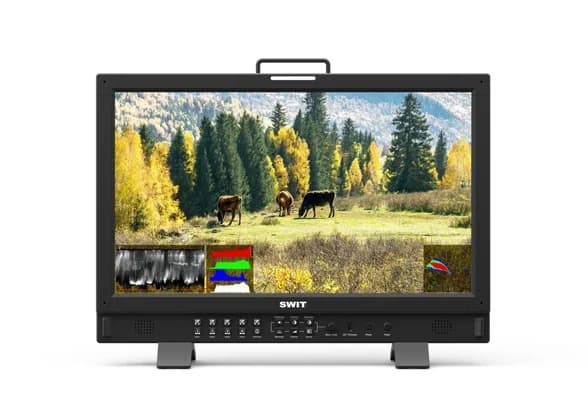

Swit 21.5-inch 4K FHD Broadcast Monitor
SKU BM-H215
View More Items From
Brand
SWIT
Key Information
- 12GSDI, 4x3GSDI, HDMI2.0 4K input
- 4-ch SDI/HDMI mixed multiview
- 2-ch SDI/HDMI PBP or PIP view
- Multi Color Gamut & HDR/SDR Viewing
DZD 507,150.00
Swit 21.5-inch 4K FHD Broadcast Monitor—
DZD 507,150.00
Product Details
SWIT BM-H215 21.5-inch 4K input FHD Broadcast MonitorBM-H215 adopts a 21.5-inch FHD 1920x1080 LCD panel, 8-bit 16.77M colors, 400 nits, 1000:1 contrast, H/V 178° viewing angle for broadcast and film productions. Multi 4K InterfacesBM-H215 provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including: 12GSDI Single link 4K; 4x3GSDI Quadlink 4K, (SQD and 2SI) HDMI 2.0 (4K60P) Supports pixel-to-pixel zoom-in the 4K signal to FHD panel. Supports Single link 4K input including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input. Multi CG & EOTF ViewingSupports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together. Key Features: 12GSDI, 4x3GSDI, HDMI2.0 4K input 4-ch SDI/HDMI mixed multiview 2-ch SDI/HDMI PBP or PIP view Multi Color Gamut & HDR/SDR Viewing 18-bit internal color processing Audio/Video Zero latency for lip-sync 3DLUT Auto Self-calibration without PC Built-in Multi camera Delog LUTs User 3DLUTs upload via USB Waveform / Vector / Histogram / Eye pattern Focus assist / False color / Zebra 16-ch audio meters / Lissajous pattern 5.1 & 7.1 surround sound phase pattern IP webserver remote control TSL UMD and text TALLY display USB firmware upgrade
