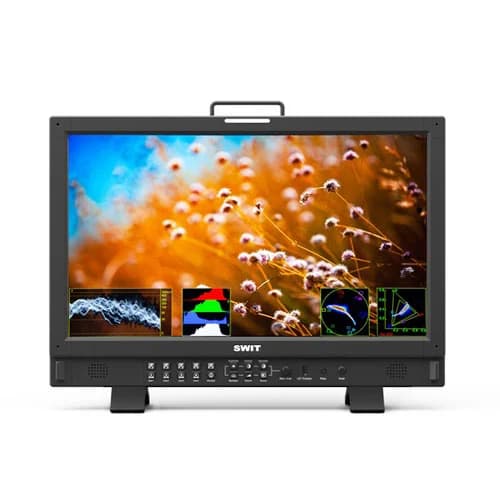

SWIT 21.5-inch 1000nits 4K Input Production Monitor
SKU BM-H215HDR
View More Items From
Brand
SWIT
Key Information
- 21.5-inch 1920×1080 QLED Panel
- 1000nits high bright HDR
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
- 4-ch SDI/HDMI® mixed multiview
- 2-ch SDI/HDMI® PBP or PIP view
- Multi Color Gamut & HDR/SDR Viewing
DZD 507,150.00
SWIT 21.5-inch 1000nits 4K Input Production Monitor—
DZD 507,150.00
Product Details
SWIT 21.5-inch 1000nits 4K Input Production Monitor. 21.5-inch 1000nits HDRFHD, 100% DCI-P3 QLED Panel BM-H215HDR adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 1000nits high bright backlight for HDR productions, 1000:1 contrast, H/V 178° viewing angle. Multi 4K InterfacesBM-H215HDR provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:- 12GSDI Single link 4K;- 4x3GSDI Quadlink 4K, (SQD and 2SI)- HDMI® 2.0 (4K60P) Supports pixel-to-pixel zoom-in the 4K signal to FHD panel. Display ModesSupports Single link 4K input including 12GSDI, HDMI®2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input. VICO 1.97 Eye ProtectBM-H215HDR QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively. The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions. HLG/PQ/S-Log3 HDRBM-H215HDR has native 1000nits high bright backlight, provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020. Payload ID Auto SettingSupport input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info. Multi CG & EOTF ViewingSupports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together. Multi CG & EOTF ViewingSupports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together. HDR/SDR De-log LUTsThe monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files. Audio PatternsMax 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket. Moreover, BM-H monitors support Lissajous figures and 5.1 & 7.1 surround sound patterns. Webserver IP Remote ControlBM-H215HDR supports webserver remote control by Ethernet LAN connection.Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.
