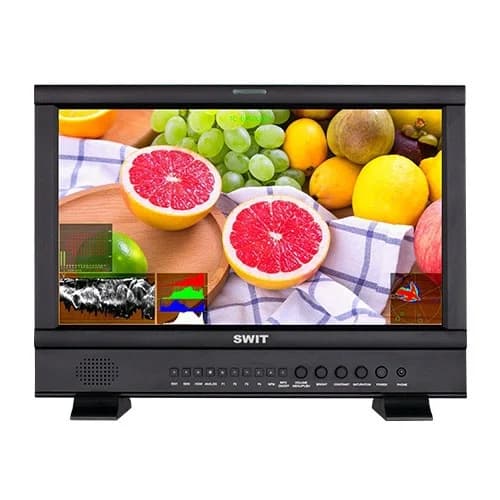

SWIT 17.3-inch Full HD 3GSDI&HDMI Studio Monitor with Waveform ( V-Mount)
SKU S-1173FS
View More Items From
Brand
SWIT
Key Information
- 17.3-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
DZD 327,075.00
SWIT 17.3-inch Full HD 3GSDI&HDMI Studio Monitor with Waveform ( V-Mount)—
DZD 327,075.00
Product Details
17.3-inch Full HD Studio LCD MonitorAH-IPS LCD panel, LED backlight S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160° / Vertical: 160°. Multi-format Input/Output S-1173F supports： 2K/3G/HD/SD-SDI input×2 2K/3G/HD/SD-SDI loop ×2 HDMI input ×1 HDMI loop×1 YUV input ×1 VGA input ×1 CVBS input ×1 CVBS loop ×1 RS485 UMD input×1 RS485 UMD output×1 RS232C UMD input ×1 RS485 GPI input ×1 L/R analog audio input×1 Video Analysis Assistant PatternWaveform / Vector scope / Histogram S-1173F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence. Embedded audio monitoringUp to 16-ch meters with alert and select output S-1173F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
