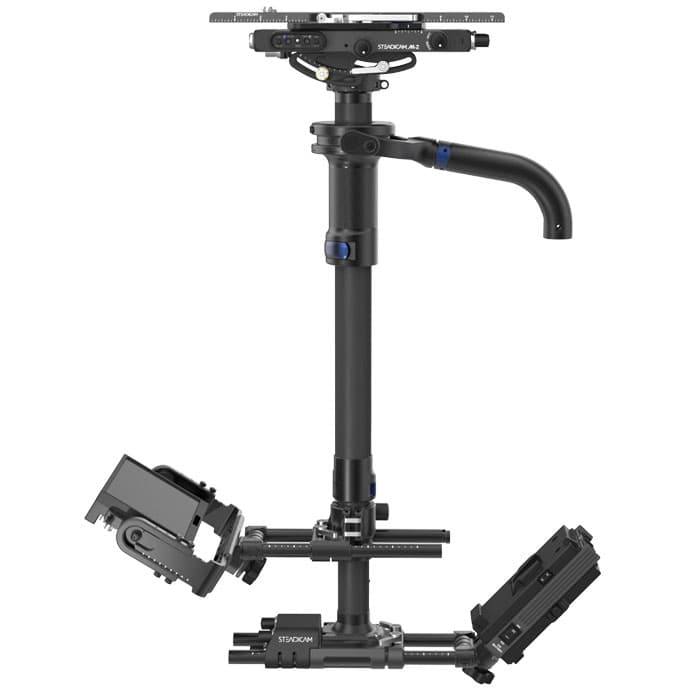

Steadicam M2 Volt light weight, configurable, modular camera stabilizer system (monitor and carry case not included)
SKU M2-VLKIT
View More Items From
Brand
Tiffen
Key Information
- M2 Top Stage Flat with dovetail plate
- M2 Gimbal 3/4", 5/8", 1/2" (817-7980 Padded Dock not included)
- 1.58 2-Section Post (21.7"-38.9"/551mm-989mm)
- 1.58 Monitor Bracket w Universal Monitor Mount
- M2 V-Lock or Gold Mount Base
- M-Series Padded Docking Bracket
- G-50x Iso-Elastic arm with Lift and Ride control (3/4" & 5/8" arm post included)
- Zephyr Vest w/G50X socket block
DZD 7,623,273.00
Steadicam M2 Volt light weight, configurable, modular camera stabilizer system (monitor and carry case not included)—
DZD 7,623,273.00
Product Details
The Steadicam M-2 is the most integrated and adaptable Steadicam system ever created. Not only does the M-2 offer a lighter weight and lower cost high end system, it also features the revolutionary Steadicam Volt™ technology directly built in for a sleeker, more versatile rig. The Volt electronics, which measure the roll, tilt and pan motion of the camera, are seamlessly integrated into the camera top stage to decrease the distance between the top of the gimbal and the top of the stage as well as reduce weight. Volt controls can be configured on either side of the stage for unobstructed access for the operator. The “M” in M-1 stands for “modular” and the M-2 takes the concept of modularity to a whole new level. Almost every component of the sled offers options for customization. Rigid carbon fiber posts are available in a variety of lengths and diameters (1.75” 2 or 3 section post 1.58” standard or short post). The sled base can be built with either Gold mount or V-lock battery plates. A hot-swappable 3rd battery mount is available. The lightweight redesigned quick-release monitor mount uses industry-standard 60mm rod spacing and is compatible with a variety of professional monitors. And both standard and tilt top stages are available with or without Volt electronics built in. In total the M-2 can be configured in multiple combinations to suit each operator’s preferences, or additional pieces can be purchased for adapting the sled based on the needs of the project.
