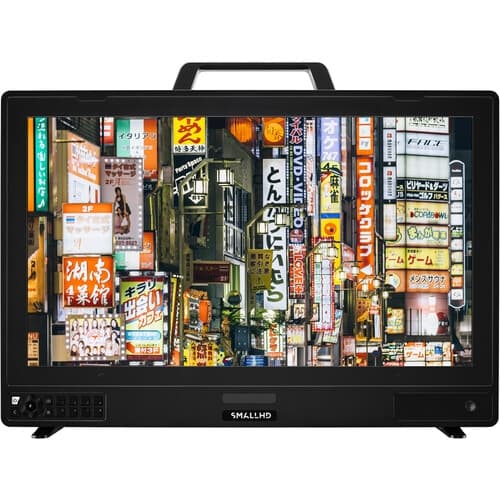

SmallHD Cine 24" 4K High Bright Pro Monitor
SKU MON-CINE-24
View More Items From
Brand
smallhd
Key Information
- 24" Display, UHD 4K Resolution
- 1000:1 Contrast, 10-Bit Color
- 1350 cd/m², SmallHD OS4.1
- 12G-SDI and HDMI 2.0 Inputs and Outputs
DZD 2,001,038.00
SmallHD Cine 24" 4K High Bright Pro Monitor—
DZD 2,001,038.00
Product Details
SmallHD Cine 24" 4K High Bright Pro Monitor. Featuring the updated SmallHD OS4.1, the monitor provides a crisp image with 10-bit DCI-P3 color intelligence, 1350 cd/m² brightness, and a 1000:1 contrast ratio. The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1 that features a fully redesigned UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with updates of OS4.1 will include dual and quad view and 4K waveforms and scopes with regions of interest. The monitor can be mounted using the 110mm VESA pattern on the back or by thirty-six 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio. The monitor includes numerous accessories such as an acrylic screen protector, a 3' long HDMI cable, two 1/4"-20 cheese-style accessory mounting sticks, two 1/4"-20 and 3/8"-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth. Key Features: 24" UHD 4K monitor 1000:1 contrast ratio 1350 cd/m² brightness Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs One HDMI 2.0 input and one HDMI 2.0 output SD card slot for 3D LUTs One RJ45 Ethernet port One RJ45 GPI port 110mm VESA mounting on the back Thirty-six 1/4"-20 mounting threads on top and sides Smartrail mounting options 1/4"-20 and 3/8"-16 cheese-style mounting sticks included SmallHD OS4.1:Internal calibration wizardColor pipe color-space formattingSettings dashboard for easy access to common settingsPreconfigured pagesPage tabsCustomizable false color overlaysCustomizable 4K waveform with region-of-interest highlightingImproved function buttonsPixel zoom, focus assist, peakingTotal UI overhaul Power Options:One 3-pin XLR 12 to 24V, 12A inputTwo 2-pin LEMO 12V, 2A outputsTwo USB Type-A 5V, 2.4A outputsTwo USB Type-C 5V, 1.5A outputsSeparately available V-mount or Gold mount battery platesXLR and battery options are hot-swappable
