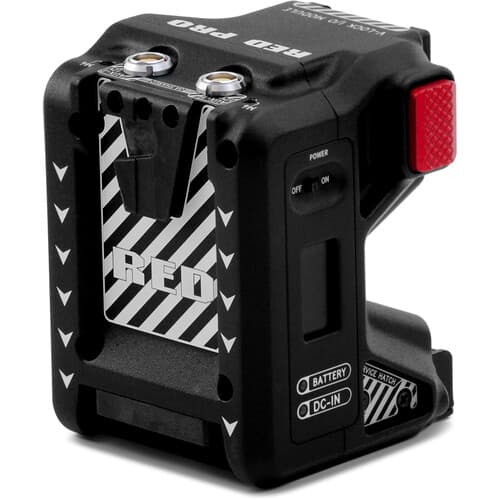

RED Pro I/O V-Lock Module
SKU 720-0064
View More Items From
Brand
RED
Key Information
- DC Power Input (DC-IN)
- Genlock (BNC)
- CTRL (4-Pin)
- Timecode (5-pin)
- 1x 3-Pin 24-volt (regulated) Fischer R/S port (3A max)
- 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)
DZD 326,708.00
RED Pro I/O V-Lock Module—
DZD 326,708.00
Product Details
The RED® Pro V-Lock I/O Module offers a variety of input/ output connections, and it also includes an industry standard V-Lock mount to power your KOMODO-X™ with higher capacity batteries. This V-lock module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following: DC Power Input (DC-IN) Genlock (BNC) CTRL (4-Pin) Timecode (5-pin) 1x 3-Pin 24-volt (regulated) Fischer R/S port (3A max) 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max) The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations. NOTES: The RED Pro V-Lock I/O Module is only compatible with KOMODO-X™. It is recommended to use 12A Batteries such a the REDVOLT® MICRO-V or REDVOLT® XL-V when using all AUX outputs simultaneously. When used with REDVOLT® NANO-V the AUX power outputs will be disabled.
