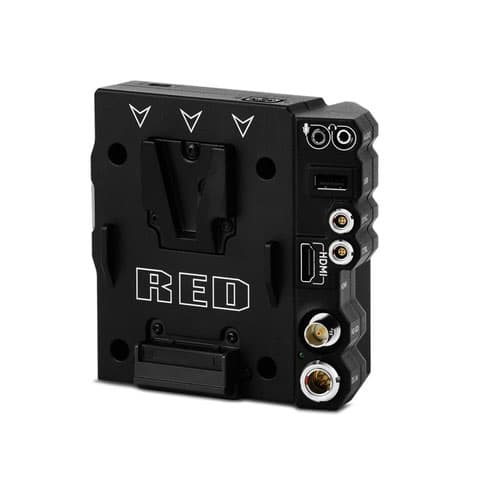

RED DSMC2 V-LOCK I/O EXPANDER
SKU 720-0045
View More Items From
Brand
RED
Key Information
- DC Power input
- Auto Boot-Up on Power-On
- 3G-SDI, HDMI 1.2 Output
- Control & Sync Ports
- USB Power Output
- AUX Power Output
- Stereo Analog Input
- Stereo Headphone Output
DZD 551,250.00
RED DSMC2 V-LOCK I/O EXPANDER—
DZD 551,250.00
Product Details
The DSMC2™ V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your DSMC2 camera using RED BRICK® batteries. Constructed from lightweight and durable magnesium, this expander module mounts directly to the rear of the camera BRAIN® and offers connections for the following: • DC Power input (DC IN)• HDMI 1.2 output (Type A socket)• 3G-SDI output (HD-SDI, 75 Ω BNC)• CTRL & SYNC ports (2x 00B LEMO 4-Pin, Timecode and Genlock support)• AUX Power output (P-Tap 2-Pin female)• USB Power output (Type A, 5 V at 1.5 A for powering HDMI transmitters or small mobile devices)• Stereo Headphone output (3.5 mm jack)• Stereo Analog input (3.5 mm jack) The DSMC2 V-Lock I/O Expander also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC IN connector on the expander. This feature allows you to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver locations. This expander is an ideal solution for a wide variety of production environments—from low-profile run-and-gun situations to studio shoots that require mobility. NOTE: The DSMC2 Top Handle is NOT fully compatible with the DSMC2 Base I/O V-Lock Expander, as the top handle will interfere with the battery when one is attached to the expander module.
