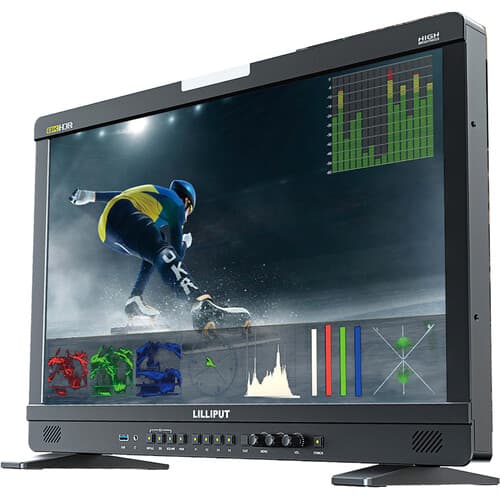

Lilliput UQ23 - 23.8" 1200 NIT High Bright Portable Production Monitor with Hardcase and Sun hood
SKU UQ23-CC
View More Items From
Brand
LILLIPUT
Key Information
- 23.8" 3840 x 2160 Resolution Monitor
- Supports up to 8K60 12G-SDI/HDMI Video
- Quad-Split Multiview with Any Input
- HDR Support, Load Custom 3D LUTs
DZD 1,086,698.00
Lilliput UQ23 - 23.8" 1200 NIT High Bright Portable Production Monitor with Hardcase and Sun hood—
DZD 1,086,698.00
Product Details
Lilliput UQ23 - 23.8" 1200 NIT High Bright Portable Production Monitor with Hardcase and Sun Hood The Lilliput UQ23 is the third iteration, and most feature-rich version of our flagship Lilliput Q23 model range. Featuring a 1200 NIT LED 10 Bit Panel, 100% compliance with the REC.709 colour space, it has the best spec of panel on a Lilliput 23" monitor. Also, with the ability to input an 8K signal through either HDMI 2.1, 12G-SDI, or via an optional Fiber SFP system it truly is the best of the Lilliput Q-Range. Specification: Display Aspect Ratio 16:9 Brightness 1200cdm² Colour Space Calibrate Colour Space to Rec. 709, DCI-P3, NTSC, BT.2020 Display Screen 23.8" 10 Bit (8+2) Look Up Table Support 3D LUT (.cube format) Resolution 3840 x 2160 Viewing Angle 178° / 178° HDR ST2084 300 / 1000 / 10000 / HLG Supported Log Formats SLog 2 / SLog 3 / CLog / NLog / ArriLog/ JLog / User Remote Control GPI 1 LAN 1 RS422 In / Out Supported Formats HDMI Formats Supported 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 SDI Formats Supported 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 SFP Formats Supported 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 Audio In / Out (48 kHz PCM Audio) Built In Speakers 2x Ear Jack 3.5mm HDMI Audio Frequency 8 Ch / 24 Bit SDI Audio Frequency 16 Ch / 48KHz / 24-Bit Inputs HDMI Inputs 1x HDMI 2.1 (Supports 8K Formats) SFP Input 1x 12G SFP+ (Optional Extra Purchase) SDI Video Inputs 4x 12G (Supported 8K-SDI Formats Quad-Link Outputs HDMI Video Outputs 1x HDMI 2.1 (Supports 8K Formats) SDI Video Outputs 4X 12G-SDI
