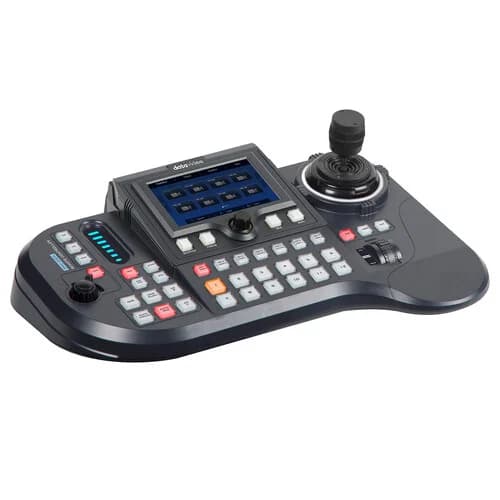

Datavideo Universal Remote Control Panel for Datavideo PTZ & Block Cameras
SKU RMC-300A
View More Items From
Brand
Datavideo
Key Information
- Remote Control 24 Cameras via DVIP
- Remote Control 8 Cameras via RS-422
- Integrated 5" Touchscreen Display
- Panel Keys, Zoom Knob, Pan/Tilt Joystick
DZD 369,338.00
Datavideo Universal Remote Control Panel for Datavideo PTZ & Block Cameras—
DZD 369,338.00
Product Details
Datavideo Universal Remote Control Panel for Datavideo PTZ & Block Cameras is a lightweight, portable control panel that is big on features. The back panel features 8 x RJ45 connectors that support RS-422 to control your compatible PTZ cameras (up to 8); an additional RJ45 connector supports DVIP protocol and allows you to control up to 24 cameras/devices (optional network router required). A D-sub 15-pin female connector outputs tally signals to connected cameras—red indicates On-air and Green indicates next camera source. A USB 2.0 port for firmware upgrades as well as a power switch and power connector complement the controler's back panel. The RMC-300A features an integrated 5" touchscreen for setup, control, and data input using a keyboard mode. The panel also features a transition scroll wheel and push buttons for dedicated functions such as shutter, iris, focus, and gain for camera control as well as switcher functions such as cut and mix/wipe. Standard camera tools including a zoom knob and pan/tilt joystick are built into the panel. You can create up to 7 presets for each connected camera and easily trigger them via the built-in programable preset buttons. The panel buttons are color illuminated and a slider control lets you adjust the brightness. The unit ships with a 12 VDC power adapter. General: Remote control via RS-422 or DVIP port Control up to 24 Datavideo PTZ/block cameras with 7 presets for each camera RGB keyboard for easy identification of keyboard functions User-friendly UI on 5" touchscreen for easy camera setup Zoom knob and pan/tilt joystick for adjusting the zoom ratio and lens position Easy-to-use and high precision Control camera, switcher, and recorder from a remote location Firmware upgradable via USB 2.0 port Touchscreen ControlThe 5" touchscreen allows you to select from camera, switcher, recorder, and control panel tabs for fine control of settings and functions PTZ ControlControl PTZ speed for zoom, pan, and tilt as well as camera position, and set up to 7 x preset positions for each camera
